PRINTER EPSON DOT MATRIX LX-310
PRINTER EPSON DOT MATRIX LX-310
Printer Type
| MODEL | LX-310 |
| PRODUCT CODE | C11CC24311 |
| PRINTING METHOD | Impact dot matrix |
| NAMBER OF PINS IN HEAD | 9 pins |
| PRINT DIRECTION | Bi-directional with logic seeking |
Print Speed
| HIGH SPEED DRAFT | 10cpi
12cpi 15cpi 17cpi (Condensed) 20cpi (Condensed) |
347cps
357cps 390cps 383cps 298cps |
| DRAFT | 10cpi
12cpi 15cpi 17cpi (Condensed) 20cpi (Condensed) |
260cps
312cps 223cps 222cps 260cps |
| DRAFT EMPHASIZED
NLQ |
10cpi
10cpi 12cpi 15cpi 17cpi 20cpi |
130cps
65cps 78cps 55cps 47cps 56cps |
Print Characteristics
| CHARACTER SETS | 13 international character sets, 13 character code tables (Standard)
Italic, PC437, PC860, PC861, PC863, PC865, Abicomp, BRASCII, Roman 8, ISO Latin 1, PC858, ISO8859-15 |
| BIT MAP FONTS | Epson Draft 10,12,15 cpi
Epson Roman 10,12,15 cpi, Proportional Epson Sans Serif 10,12,15 cpi, Proportional |
| BAR CODE FONTS | EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, PostNet |
Printable Columns
| PITCH | CHARACTER PER LINE (cpi) |
| 10cpi | 80cpi |
| 12cpi | 96cpi |
| 15cpi | 120cpi |
| 17cpi | 137cpi |
| 20cpi | 160cpi |
Input Data Bufferr
128 KByte
Interface
| STANDARD | Bi-directional parallel (IEEE 1284 nibble mode support),
Serial USB (ver 2.0 Full Speed) |
Ribbon Cartridge
| COLOR | Black |
| TYPE | Fabric ribbon cartridge |
| RIBBON LIFE | Approx. 4 million characters
(Draft 10 cpi, 14 dots/character) |
| TrueColor+Fun Sticker is attached on Epson genuine ribbon cartridge, | |
Reliability
| MVBF (Mean print volume between failure) | Approx. 20 million lines (Except print head) |
| MTBF (Mean time between failure) | 10,000 POH (25% Duty cycle) |
| PRINT HEAD LIFE | 400 million strokes/wire |
Control Panel
4 switches, 5 LEDs
Environmental Conditions (Operating)
| TEMPERATURE | 5 ~ 35°C |
| HUMIDITY | 10 ~ 80%RH |
Electrical Specifications
| RATED VOLTAGE | AC 220V ~ 240V |
| RATED FREQUENCY | 50 ~ 60Hz |
| POWER CONSUMPTION | Approx. 27W (ISO/IEC 10561 letter pattern)
Approx. 1. 1W in sleep mode, 0W in powered off mode Approx. 0. 3W in auto off mode Energy Star Compliant |
Specification Printer
DIMENSIONS |
|||

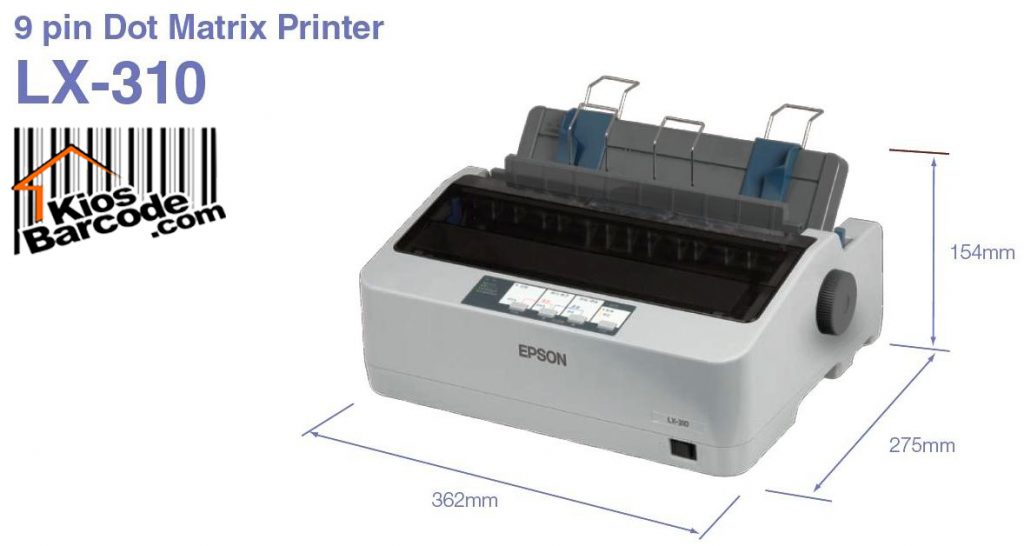

| WIDTH x DEPTH x HEIGHT | 362 x 275 x 154mm | ||
| WEIGHT | Approx. 4.1kg | ||
PAPER HANDLING |
|||
| PAPER PATH: | Manual Insertion
Tractor |
Rear in, Top out
Rear in, Top out |
|
| PAPER SIZE:
Cut sheet (Single) |
Widh Length Thickness |
100~257 mm (3.9 ~ 10.1*) 100~364 mm (3.9 ~ 14.3*) 0.065~0. 14mm(0.0025~0.0055”) Total |
|
| Cut sheet (Multi Part) | Widh
Length Thickness |
100~257 mm (3.9 ~ 10.1*)
100~364 mm (3.9 ~ 14.3*) 0.12~0.39mm(0.0047~0.015”) Total |
|
| Envelope No.6 | Widh
Length Thickness |
165mm (6.5”)
92mm (3.6*) 0.16~0.52mm(0.0063~0.0205”) Total |
|
| Envelope No.10 | Widh
Length Thickness |
241mm (9.5”)
105mm (4.1*) 0.16~0.52mm(0.0063~0.0205”) Total |
|
| Continuous paper
(Single/Multi Part) |
Width
Length (one page) Thickness |
101.6~254 mm (4 ~ 10.0”)
101.6~558.8mm (4 ~ 22.0”) 0.065~0.39mm(0.0025~0.015”)Total |
|
| Roll paper | Width
Thickness |
216mm (8.5”)
0.07~0.09(0.0028~0.0035*) |
|
| PAPER FEEDING: | Stadard
Optional |
Friction, Push Tractor
Roll Paper Holder |
|
| COPIES | Original + 4 Copies | ||
| ACOUSTIC NOISE | Approx. 53dB (A)(ISO 7779 pattern) | ||
| LINE SPACING | 4.23mm(1/6*) or programmable in increments of 0.118mm (1/216 inch) | ||
PRINTER DRIVER |
|||
| OS | Microsoft®Windows®2000/XP/Vista®/7 | ||
| Utility | Epson Status Monitor 3 (Microsoft®Windows®2000/XP/Vista®/7)
Epson Printing Setting (Microsoft®Windows®2000/XP/Vista®/7) |
||
OPTIONS |
|||
| Fabric Ribbon Cartridge (Black) | C13S015632 | ||
| Roll Paper Holder (#8310) | C12C811141 | ||
| Cpi: Characters per 25.4mm (Characters per inch), Cps: Characters Per Second
POH: Power On Hours |
|||
WARRANTY SERVICE |
|||
| 1-year on—site warranty service | |||
